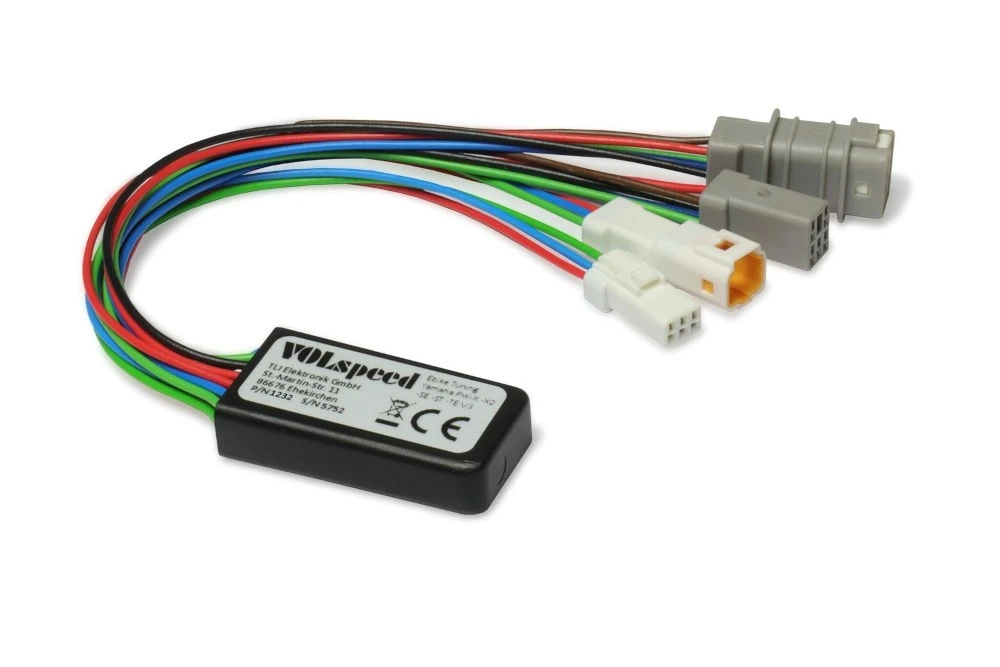

VOLspeed E-Bike Tuning for Yamaha PW-X / PW-X2 / PW-SE / PW-ST / PW-TE / PW-CE / Air Drive V3 ID: 3458-467

Tuning module for most e-bikes / pedelecs with Yamaha drive system.

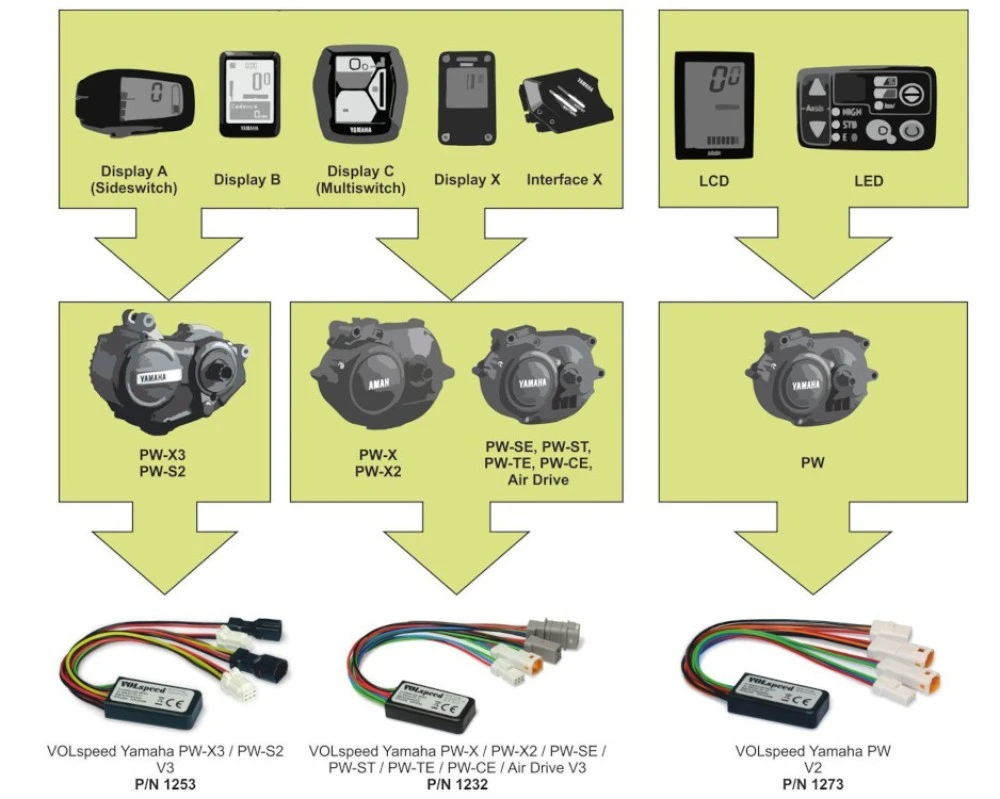

Suitable for the motor types PW-X, PW-X2, PW-SE, PW-ST, PW-TE, PW-CE and Air Drive of all model years (also 2024). For bikes with other Yamaha drive systems, please refer to the following selection guide.
Not compatible with:
- Yamaha Crosscore RC
- Yamaha Wabash RT
Compatible with the displays Sideswitch (Display A), Display B, Multiswitch (Display C), Display X and Interface X.
The device is installed invisibly from the outside on the motor. No cables have to be damaged or modified, the module is simply plugged in and is immediately ready for use.
No PC or smartphone is required. All settings are made via the display control buttons on the bike.
A unique feature is the ability to set both the speed limit, the downshift behavior and the wheel circumference via the display.
In contrast to the almost complete elimination of the speed limit with other tuning modules, this module still allows a very sporty driving style with moderate battery consumption by slightly increasing the limit, e.g. to 32km/h. For a more natural riding experience, the dynamic mode spreads the downshift over a wider speed range, the so-called "wall effect" is significantly reduced.
New in the now third version of the module is the possibility to set an own code for activation. In addition, setup is now no longer required after installation. The module is immediately ready for operation.
Features
Automatic initialization, immediately ready for operation after installation – plug and ride.
Tuning can be turned on or off via the arrow keys on the control unit.
After switching on, the speed limit can be freely set in the range 25 – 45km/h (15.5 – 28mph) using the arrow keys. The last set value is stored.
The tuning is always turned off after switching on the bike.
Setting of a smoother “throttling behaviour” possible (dynamic mode). The otherwise very abrupt cut-off at the speed limit is thereby significantly softened.
Individual activation code adjustable
Correct display of speed and distance traveled at all times.
Residual range calculation from current riding style with active tuning.
Correct total mileage reading even after removing the tuning module, because the kilometers in the motor control are corrected by the tuning module.
Wheel circumference adjustable (+/-10%) to improve the accuracy of the speed displa
